A CB antenna mount is more than a way to keep a whip from falling off the truck. It sets the antenna’s location, gives the hardware its electrical connection and determines how much nearby metal can affect the system. Get those basics right first, and the final SWR check becomes a useful adjustment instead of a long search for a problem that started at the bracket.
This guide is for a normal mobile CB installation on a pickup, SUV, car or work vehicle. Every antenna design is different, so its instructions take priority. The process below gives you a practical order of operations: choose a mount made for the job, put it in a sensible location, make the hardware solid, protect the coax, then use the meter to confirm the finished installation.
Start with the antenna and vehicle, not the bracket
Choose the antenna before you choose the mounting spot. A short magnet-mount antenna, a tall stainless whip and a mirror-mount antenna all have different needs for support, clearance and cable routing. A mount that is strong enough for a short antenna may flex with a taller whip. A location that is easy to reach may put the antenna beside a rack, light bar or cab corner that changes the way it behaves.
Think through how the vehicle is used every day. A work truck may need clearance from a trailer, a garage door, a ladder rack or a tonneau cover. A daily driver may need an antenna that can be removed or folded down. Those are legitimate reasons to choose one mount over another, but they do not remove the need for a stable installation and a clean path for the antenna system.

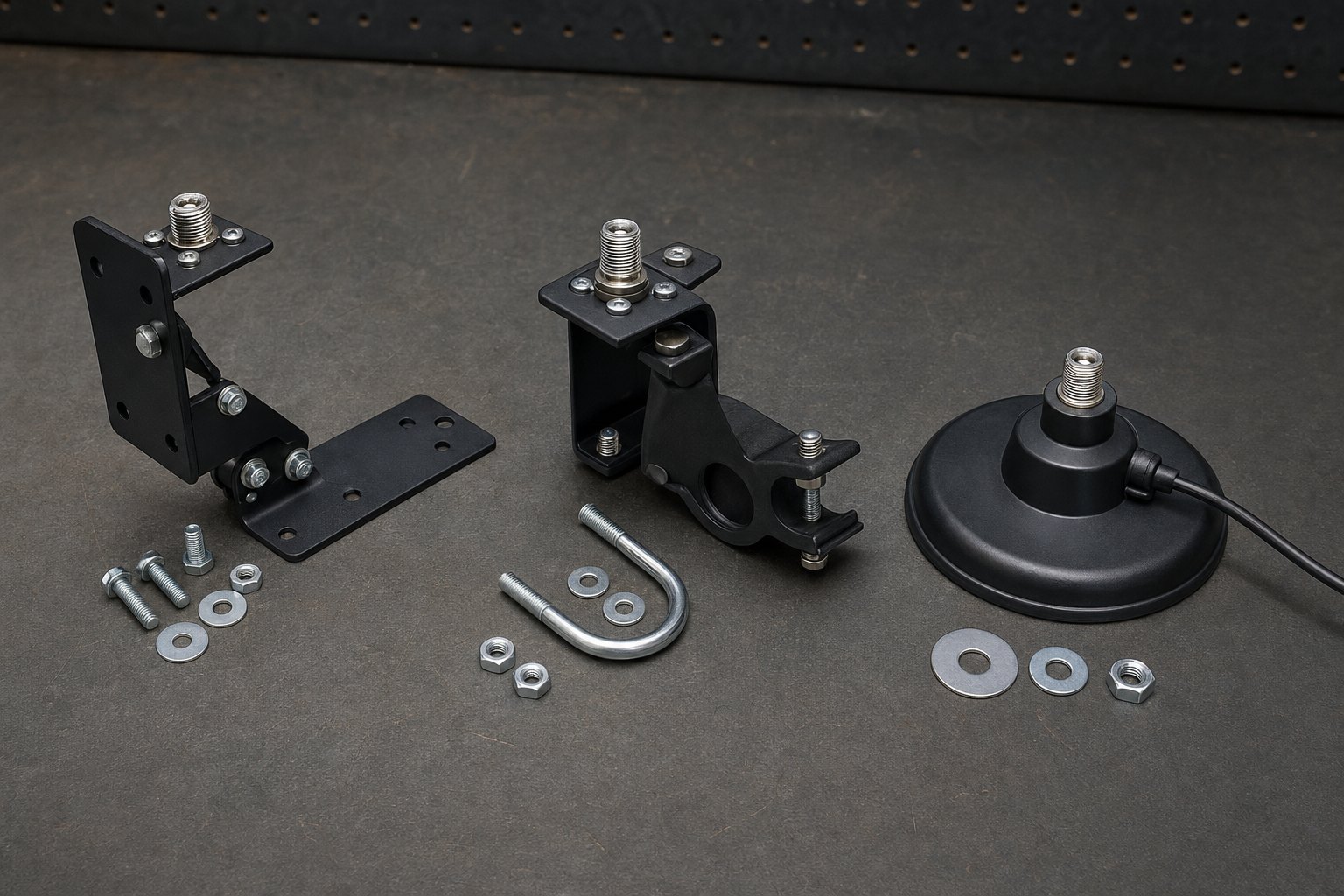

Choose a mount that matches the job
Most mobile CB installations use a mirror bracket, bed-rail bracket, stake-pocket mount, roof mount, fender mount or magnetic mount. None of those is automatically right for every vehicle. The better choice is the one that supports the antenna, clears nearby metal as well as practical and gives you a safe route for the coax into the cab.
A mirror or bed-rail bracket can be a good option when it attaches to substantial vehicle metal and puts the whip above the bed or cab line. A roof mount often gives excellent height and a balanced location, but it involves a more permanent installation and must be sealed correctly. A magnetic mount can be useful when drilling is not an option, as long as the mount is rated for the antenna, placed on a clean metal surface and removed carefully when necessary.
Do not choose a light-duty mount simply because the threads fit the antenna. Wind load and vibration work on that mount every mile. The bracket should not rock, twist or pull against thin trim. If it flexes while the vehicle is parked, it will only get worse on the road.

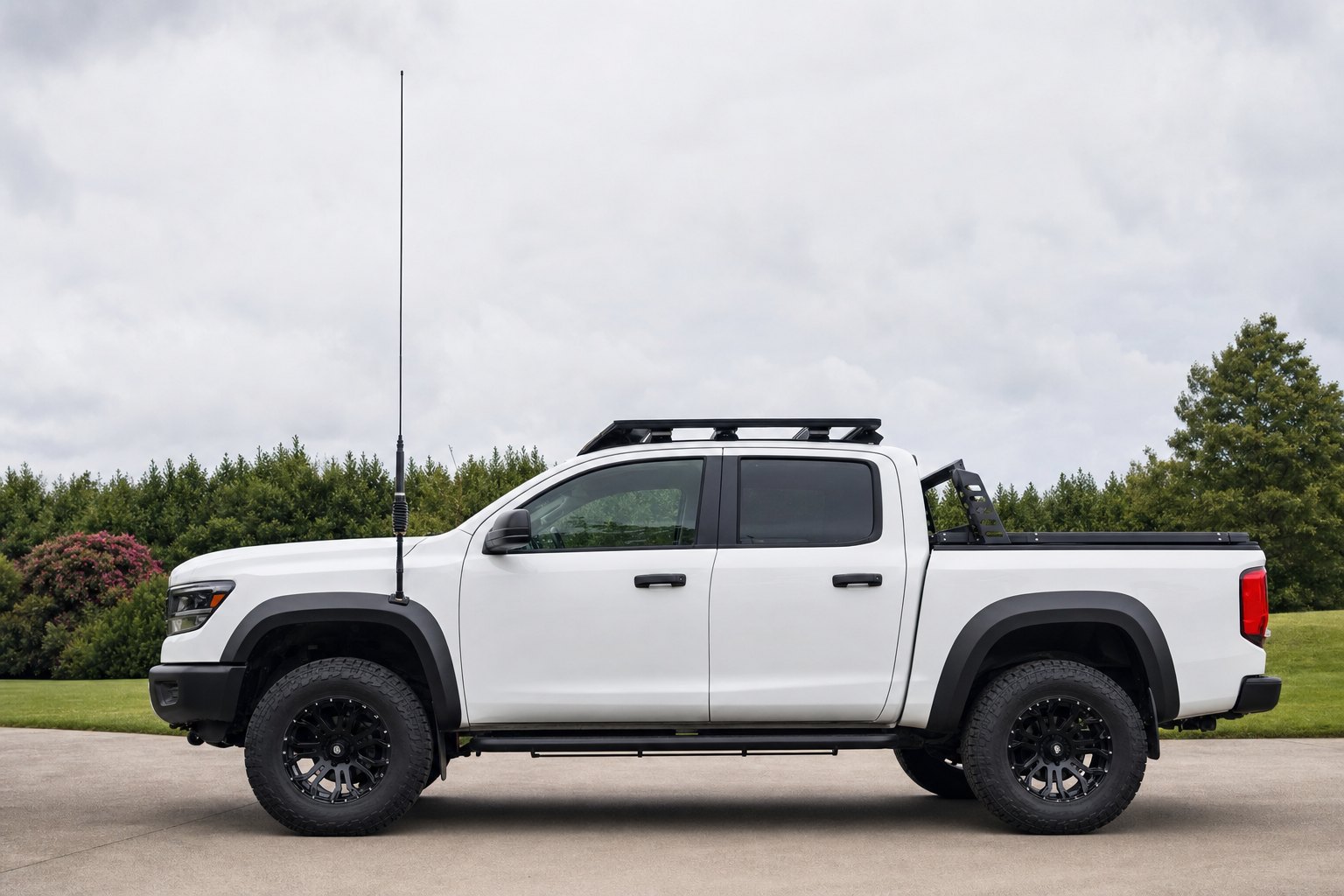

Give the antenna enough clearance
Nearby metal changes an antenna’s surroundings. The cab, bed, rack, tool box, trailer, spare tire carrier and even another antenna can influence the reading and the way the system radiates. You cannot make a mobile antenna float in empty space, but you can avoid boxing it into a crowded corner or laying it against a large metal surface.
Mount the antenna as high and as clear as the vehicle and your use allow. Keep it vertical when the antenna manufacturer calls for a vertical installation. Before drilling or tightening anything, open the doors, move the tailgate, check the garage clearance and confirm that the whip will not contact a rack or roof accessory through its normal movement. A good spot is one you can live with after the first drive, not one that only looks clean in the driveway.
For a fixed base installation, follow the applicable rules as well as the equipment instructions. The FCC’s CB antenna-height rule limits how high a CB antenna may extend above ground or the supporting structure. A mobile truck installation usually raises different practical questions, but the same discipline applies: plan the location before you commit to it.
Make the mechanical connection solid
Start with clean hardware and the correct fasteners for the mount. Tighten the bracket so it cannot rotate or shift, but do not crush thin body panels or strip the hardware. Use the washers, lock washers and backing plates supplied with the mount when they are part of the design. A mount that loosens over time can create an intermittent problem that looks like a bad radio, weak range or an SWR reading that will not stay put.
Check the antenna stud carefully. Its center conductor and outer metal parts must remain isolated from one another in the way the stud manufacturer specifies. A misplaced washer, a cracked insulator or a strand of coax braid touching the center connection can turn a straightforward installation into a difficult fault. Assemble the stud in the correct order, then give the antenna and coax connection a gentle pull test before you route the cable.
Weather matters too. Use a mount and hardware meant for exterior use, keep water from sitting in connectors and recheck the hardware after the first few drives. A clean, tight mount at installation is not a permanent guarantee when the vehicle sees rain, road salt, vibration and temperature swings.

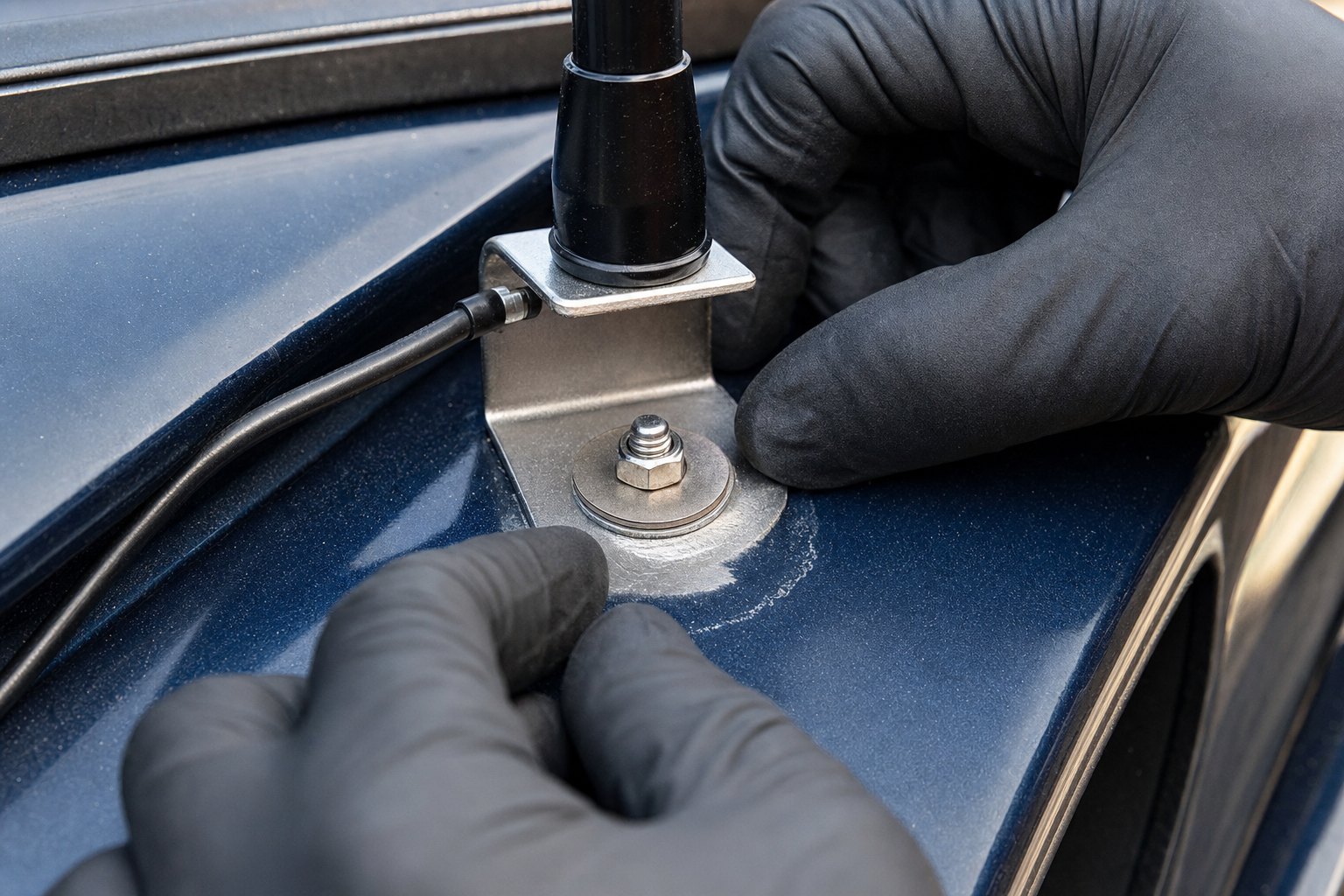

Check the electrical path before tuning
Many mobile CB antenna systems use the vehicle body as part of the antenna system. In those setups, paint, powder coat, corrosion, plastic trim or insulated rack feet can interrupt the path the mount needs. That is why an antenna can look perfectly secure yet produce a high or erratic reading. The mount is physically attached, but the electrical connection is not what the antenna expects.
Follow the instructions for your exact antenna and mount before removing paint or adding a bonding connection. Do not assume every antenna has the same requirement. When the design calls for metal-to-metal contact, make it at the intended mounting point, use the correct washers and protect the surrounding finish from water after the connection is established. Do not scrape random vehicle surfaces just to chase a meter number.
If you are installing a no-ground-plane antenna, use the cable and mounting method supplied or specified for that antenna. Mixing a specialty antenna with a generic mount or cable arrangement can give you readings that do not make sense. The goal is to assemble the system the antenna maker designed, then diagnose any remaining issue one part at a time.
Route the coax before you tighten everything for good
Plan the cable path while the mount is still easy to reach. The coax needs broad bends, enough slack for normal movement and protection from door hinges, sharp edges, exhaust heat, seat tracks and areas where cargo can crush it. Avoid pulling the cable so tightly that a little vibration transfers straight to the connector at the mount.
Do not use the coax as a tie-down, handhold or an improvised ground strap. Keep it away from high-current power wiring where practical, and use clips or grommets where the cable passes through a panel. The separate CB antenna cable guide explains what to inspect when a cable or connector is the likely source of an antenna-system issue.
Use the SWR meter after the installation is complete
Only begin antenna adjustment after the mount, stud and coax route look right. Connect the meter and take short, repeatable readings on channels 1 and 40. The meter is showing you how the finished system behaves, not just whether the whip is too long or short. If the readings are high at both ends of the band or change when you touch the mount or coax, go back to the installation rather than moving the whip again.
The CB SWR meter guide walks through the meter connection and calibration process. If channel 40 reads higher than channel 1, use the channel comparison guide before making a small supported adjustment. Those readings can be useful, but they should not be used to hide a loose mount or poor connection.
Keep any test transmission as brief as the meter procedure requires. The ARRL’s explanation of SWR and reflected power is a helpful reminder that a poor match is a system problem to diagnose, not something to transmit through for long periods.
Do a short installation check before the first drive
Walk around the vehicle with the antenna installed. Look at the mount from the outside and inside where you can reach it. Confirm that the bracket is secure, the antenna clears the body and the coax is not hanging near a tire, hinge, exhaust part or cargo edge. Open the doors and tailgate, move the seat and check any folding antenna feature before you put tools away.
Then take a short drive and inspect the mount again. Vibration can reveal a bracket that seemed tight while the truck was parked. Listen for an antenna that taps a rack or body panel, and check that the coax has not migrated toward a pinch point. A quick follow-up check is far easier than finding a damaged cable weeks later.
Keep a simple note of the finished setup: antenna model, mount type, mounting location, cable route and channel 1, 20 and 40 readings. That baseline is useful whenever you add an accessory, move the antenna, change vehicles or begin troubleshooting a range complaint later.
A mounting checklist that prevents rework
- Match the mount to the antenna. Confirm the bracket can support the antenna’s size, movement and mounting hardware.
- Check location and clearance. Keep the whip as clear as practical of the cab, bed accessories and other nearby metal.
- Build the stud correctly. Follow the supplied washer and insulator order so the intended connections stay separate.
- Protect the cable route. Use broad bends, strain relief and a grommet or clip wherever the cable needs protection.
- Measure only after the whole system is assembled. Record repeatable readings before making a small supported antenna adjustment.
When the mount may be the problem
Pause the tuning process when the mount moves, the reading changes wildly after a bump, the coax connection feels loose or the antenna is crowded against a rack or body panel. The same goes for a reading that stays high across the band despite small, logical antenna adjustments. Those symptoms often point back to placement, mounting hardware, the stud or the cable.
Bring useful details when you need help: the radio model, antenna model, mount type, vehicle, channel 1 and channel 40 readings, and any change that happened before the problem began. Custom CB Radios can help turn those details into a focused repair conversation through the CB radio repair service, rather than guessing at a replacement part.
Need a Bench Check?
Start with the mount and readings.
Share the antenna type, mounting location and readings across the band. That gives the shop a better place to begin.
Request a Repair →Frequently asked questions
Where is the best place to mount a CB antenna on a pickup?+
The best location depends on the antenna and vehicle, but a solid metal mounting point with good clearance is more important than choosing a fashionable spot. Keep the whip as clear as practical of the cab, bed accessories and other large metal objects, then follow the antenna maker’s mounting guidance.
Does a CB antenna mount need to touch bare metal?+
Many mobile antenna systems need a sound electrical connection between the mount and the vehicle body. Paint, powder coat, plastic shims or corrosion can interrupt that path. Check the instructions for your antenna and mount before removing any finish, especially on a newer vehicle.
Can I mount a CB antenna on a roof rack?+
A roof rack can work only when the rack, mount and vehicle body provide the electrical path the antenna requires and the antenna has reasonable clearance. A rack that is isolated by plastic feet or coated hardware can create a problem that looks like a tuning issue.
Should I use a magnetic CB antenna mount?+
A magnetic mount can be a practical temporary or no-drill option when it is rated for the antenna and placed on a clean, stable metal surface. Protect the paint, route the coax carefully and check the SWR readings after installation because placement still affects the antenna system.
Why does my CB antenna mount affect SWR?+
The mount determines where the antenna sits, how it connects electrically to the vehicle and what metal is near the radiating element. A loose mount, poor electrical contact or crowded location can produce a reading that antenna-length adjustments will not solve.
