CB Antenna Setup

Best CB Antenna for Truckers: Choose the Right Setup

Choose a CB antenna for a working truck by matching the antenna, mount, coax and clearance to the way the rig is actually used.

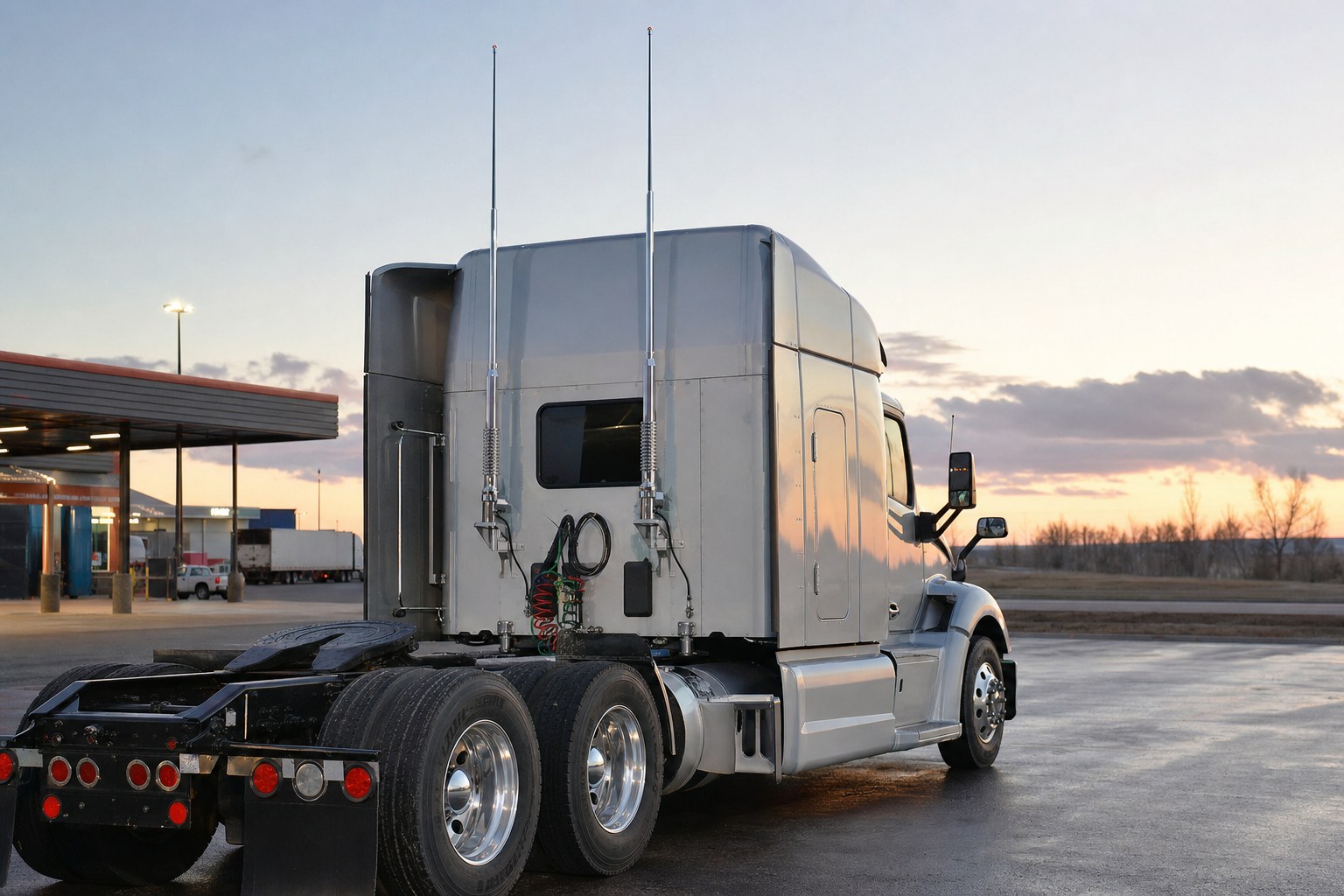

Semi truck with two tall CB antennas mounted behind the sleeper cab

The best CB antenna for a trucker is not simply the tallest whip or the most expensive kit. It is the antenna system that can be mounted solidly on the truck, cleared from nearby metal, routed safely and tuned for the way the rig is actually used. That is why two drivers can buy the same antenna and get very different results.

Start with the truck, not the catalog. A working rig has mirrors, a sleeper, fairings, a trailer, lights, racks and route restrictions that shape what will work. Choosing the antenna, mount and coax as one system gives you a better chance of clear, reliable communication than replacing one part at a time.

Start with the job the antenna has to do

A truck antenna has a practical job: help the radio communicate consistently while the truck is moving through the places you actually work. That makes clearance, mounting strength and installation quality more important than chasing a universal “best” model. A setup for local work that regularly clears low parking structures may call for different compromises than a highway truck that spends long days on open interstate.

Before comparing antenna styles, write down three things: where the truck has a usable metal mounting point, how much vertical clearance you have on normal routes and whether the truck already has one antenna position or a matched pair. Those answers narrow the field faster than a generic top-ten list. They also keep you from buying an antenna that cannot be installed where it needs to sit.

The radio is only one part of the decision. Drivers building a full cab setup can use our CB radios for truckers guide to think through the radio, microphone, antenna and repair questions together before ordering equipment.

Choose the antenna style that fits the mounting position

Most truck installations come down to a few practical antenna styles. A steel whip is simple, durable and easy to adjust when the mount gives it enough room. A center-loaded or base-loaded antenna can package the loading coil differently, which may suit a particular mount or clearance situation. The important point is not the label on the antenna. It is whether the antenna can be mounted upright, secured well and kept clear enough of the truck to behave predictably.

Antenna length can be useful because more height often gets the radiating portion farther above surrounding metal. But taller is not automatically better when the whip hits obstacles, bends constantly or must sit in a crowded position. A durable, well-placed antenna that stays upright is a better working choice than a longer one that is always folded down, striking objects or mounted where the truck shields it.

Do not confuse an antenna package with a complete installation. Many products include a whip but not the right mount, stud, hardware or coax for your truck. Make sure the pieces are intended to work together, then use the antenna maker’s instructions for its adjustment range and mounting requirements.

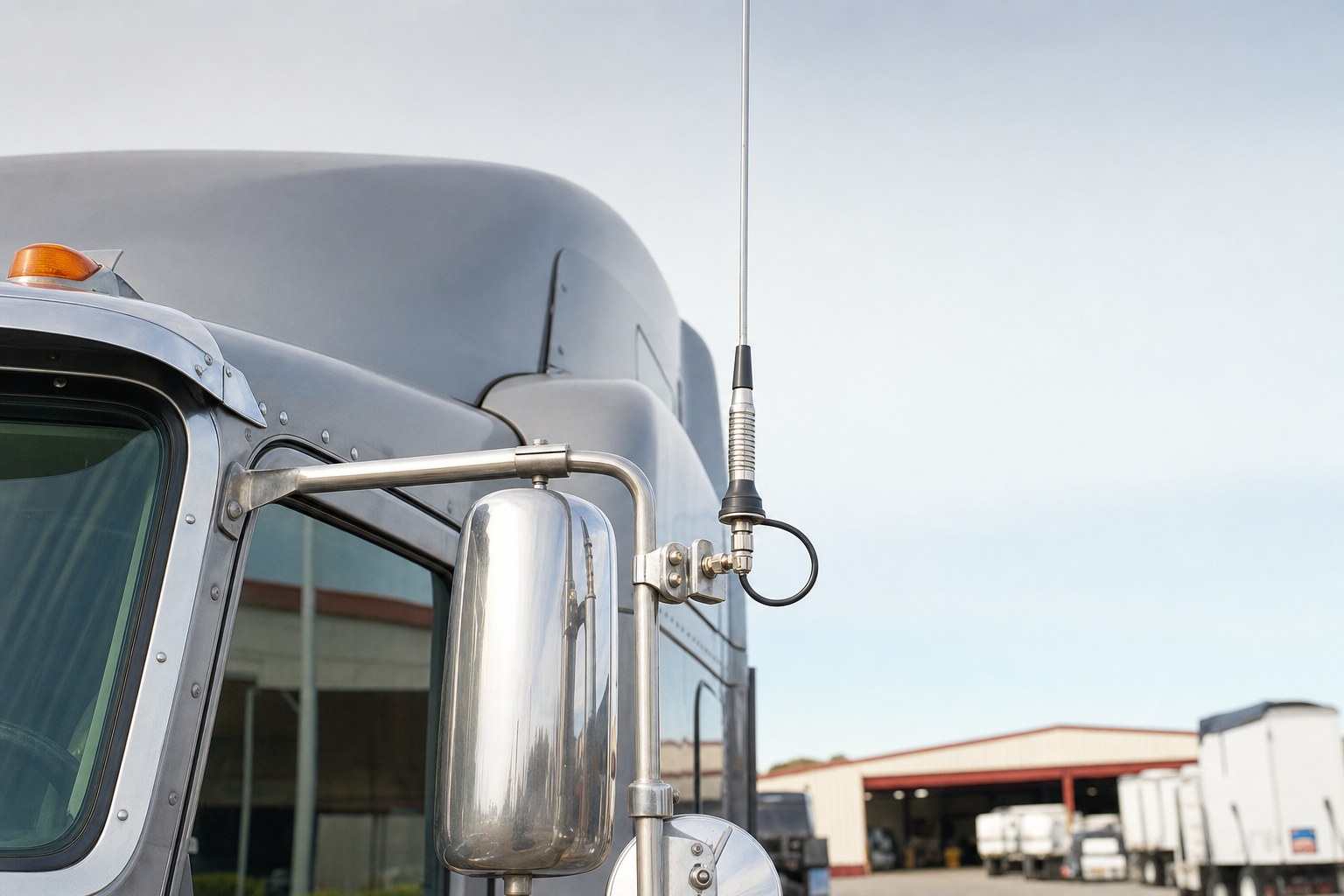

CB antenna mounted to a semi truck mirror bracket with the coax connection visible

Put the mount ahead of the antenna

The mount decides whether the antenna has a stable home on the truck. It needs to hold the antenna securely through vibration and weather, provide the electrical connection the antenna system expects and keep the whip where it can clear the cab and trailer. A loose, corroded or isolated mount can make a good antenna look bad on the meter.

Mirror brackets are common because they put the antenna up high and offer a strong structural location when the bracket and truck support the installation properly. Other trucks may have a purpose-built mount behind the cab or another solid metal point. What matters is avoiding a mount that depends on thin trim, loose hardware or a painted surface that prevents the electrical contact required by the design.

Inspect the hardware after a few drives. A mount that looked fine during installation can settle or loosen with vibration, especially after a rough route. If the antenna suddenly starts reading differently, inspect the mount and coax before deciding the antenna itself has failed. Our CB antenna mounting guide walks through the practical checks that should happen before tuning.

Give the antenna real clearance

Trucks surround an antenna with more metal and moving parts than a simple pickup installation. The cab, sleeper, mirror arm, trailer and accessories can all affect placement. Keep the antenna as clear as practical of nearby metal, and make sure it can stay in its normal operating position instead of resting against the cab or another object.

Dual antennas can be a good fit when the truck is set up for a properly matched pair. They should be treated as one system, with comparable antennas, sound mounts and the correct harness arrangement. They are not a shortcut around installation problems. A bad coax connection or weak mount on either side can still create poor or inconsistent readings.

Think ahead to the places the truck visits. A tall antenna that works beautifully in open country can still be a nuisance at fuel islands, docks, trees and low building entrances. A spring, fold-over mount or another approved solution can make day-to-day use easier, but the antenna should always be checked again after a change to its position or hardware.

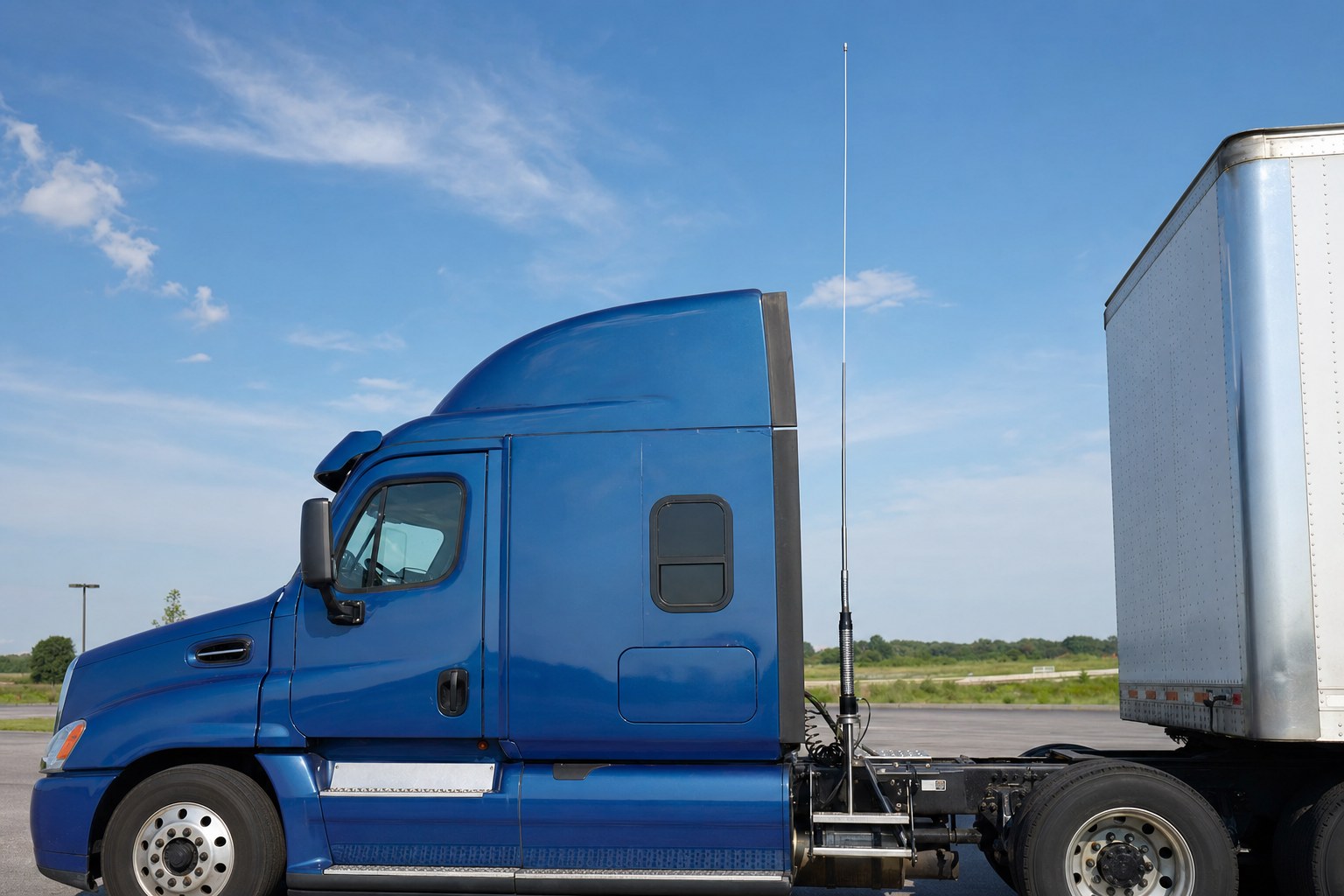

Tall CB antenna mounted behind the cab of a semi truck with clear space around it

Do not treat coax as an afterthought

The coax connects the radio to the antenna, so it deserves the same attention as the antenna and mount. Use a cable type and length appropriate for the installation, with connectors that seat fully and a route that avoids pinching, heat, sharp edges and moving hardware. A cable that rubs through behind trim or gets crushed in a door can create a problem that looks exactly like a tuning issue.

Leave enough slack for a clean route, but do not bundle excess cable into a tight random coil just to hide it. Support the cable where it needs support, use broad bends and protect it at any edge or pass-through point. Check both connectors, including the center pin and threaded connection, before changing antenna length. One loose connector can waste a lot of time and lead to an unnecessary purchase.

Our CB antenna cable guide covers the connector and routing checks that are worth making before you reach for tools. For the radio-frequency basics behind a mismatch, the ARRL’s SWR explanation shows why reflected power is a system clue, not proof that the antenna alone is the problem.

Match the antenna to the truck, not a generic recommendation

Antenna advice gets vague quickly because the truck matters so much. A long-nose conventional with strong mirror arms presents a different mounting opportunity than a truck with integrated mirrors, a day cab, a sleeper fairing or a tight roofline. The right antenna is the one that fits the available mounting point without placing a weak bracket or an awkwardly positioned whip at the center of the system.

Look at the truck from the side and rear before ordering. Find the highest sturdy position that gives reasonable space around the whip. Notice where the trailer passes, where you stand to fuel the truck and where a folded antenna would land. A setup that seems fine in a product photo may be a poor match for the physical space around your cab.

Also consider how the truck works in bad weather. Road spray, salt, wash bays and vibration are hard on exposed hardware. Choose mounting hardware that can stay tight and be inspected, then make checking the antenna stud, bracket and coax part of normal truck maintenance. Waiting until communication gets poor turns a five-minute inspection into an uncertain diagnosis.

Think about maintenance before the first mile

A truck antenna lives outside. It gets hit by weather, vibration and the occasional low branch, and it is often overlooked until a radio starts acting up. Choose a position where you can see the mounting hardware and follow the coax without taking half the truck apart. An installation that is easy to inspect is easier to keep working.

Make a quick visual check part of regular walk-around work. Look for a whip that has shifted in its collar, a spring that is bent, a bracket that is loosening, a missing cap or a coax jacket that is rubbing. You do not need to adjust anything every week. You only need to catch a physical change before it turns into an unreliable antenna system.

After an impact or a new noise problem, begin with the obvious physical details. Is the antenna still upright? Is the mount tight? Has the coax been pulled or pinched? A clean inspection is often more useful than immediately replacing the radio or buying another antenna. It gives you a sensible reason for the next step and can prevent spending money on the wrong part.

Understand the difference between antenna gain and a usable setup

Product descriptions often make antenna performance sound like a single number. In a moving truck, the usable result comes from the whole installation. An antenna can have a good reputation on paper and still underperform when it is mounted too low, blocked by cab hardware, paired with damaged coax or never checked with a meter after installation.

That is why experienced drivers often value a simple system they can inspect. A sound mount, a clear cable route and a whip that stays in its intended position are things you can verify. They reduce the chance that a problem turns into a guessing game at the side of the road. The goal is dependable communication, not a box with the biggest claim on it.

A few inches of improved clearance can be more useful than a more exotic antenna style in a cramped location. Likewise, a practical antenna that can clear the routes you use is more valuable than a taller model that must be bent over or removed constantly. The installation should work on the days when the truck is dirty, loaded and on schedule, not only in a clean parking lot.

Plan to tune every new truck antenna system

An antenna is not truly chosen until it has been checked on the truck. The same whip can behave differently on a different cab, mount or coax route, which is why the final step is an SWR check after installation. Use brief transmissions only as required by your meter, measure consistently and follow the limits in your radio and antenna instructions.

Take readings on channel 1, channel 20 and channel 40. The end-channel pattern shows whether the antenna is broadly too long or too short for the setup, while the middle reading gives useful context. A lower reading on channel 1 and a higher reading on channel 40 usually points toward a small shortening adjustment when the antenna supports it. The opposite pattern generally points toward a small lengthening adjustment.

Make only one small, reversible change at a time. Cobra’s SWR adjustment instructions follow the same sensible approach: measure, make a small adjustment, then measure again. Do not cut a whip until the maker supports trimming, the adjustment range has been used and the readings consistently point in that direction.

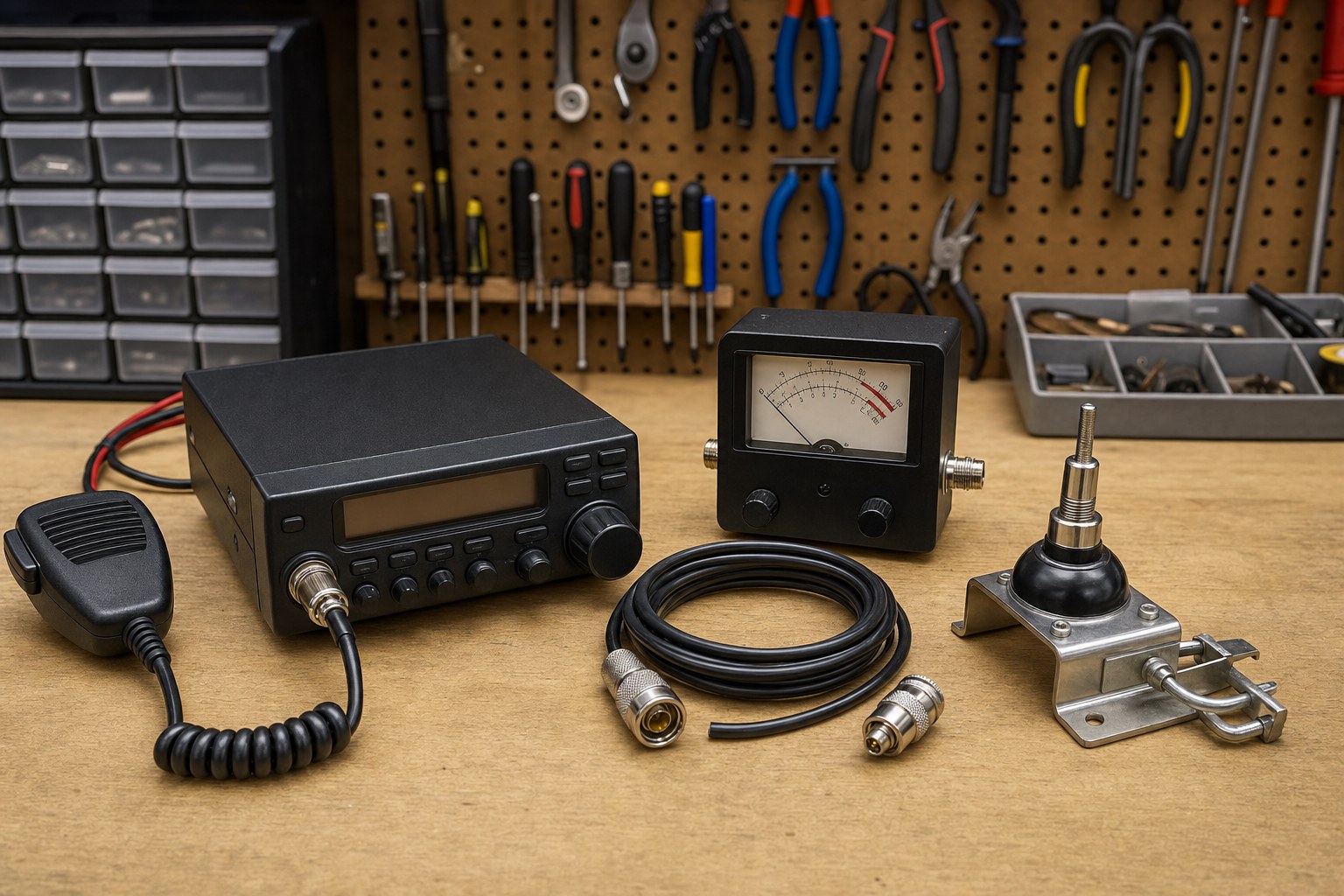

CB radio, analog SWR meter, coax cable and antenna mount arranged for a system check

Use the reading to decide what to fix

A good SWR check does more than tell you whether the antenna needs a small adjustment. It helps separate an antenna-length issue from a mount, coax or connection problem. If the readings are stable and move logically after a small adjustment, the antenna is responding as expected. If the readings are high on both ends of the band, jump around or change when you touch the cable, stop adjusting length and inspect the installation.

Readings improve in a consistent direction. Keep adjustments small, secure the hardware and check the channels you actually use.
Both ends of the band stay high. Recheck the mount, coax, stud and connectors before changing the antenna again.
The reading changes suddenly after a drive. Look for vibration, a loose mount, a damaged cable or an antenna that has been knocked out of position.
The antenna has no approved adjustment method. Leave it alone and diagnose the rest of the installation instead of forcing a permanent change.

The CB SWR meter guide gives you the full connection and calibration process. If you see channel 40 reading higher than channel 1, our channel-reading guide explains how to make a controlled adjustment without guessing.

Common buying mistakes that cost time later

The first mistake is buying an antenna before confirming the mounting point. A driver sees a popular whip, orders it, then has to force it onto a weak bracket or put it in a location with poor clearance. Reverse that order. Choose the location first, then choose the antenna and hardware that are made for it.

The second mistake is treating an SWR meter reading as a pass-or-fail score without looking at the pattern. A reading that stays high or changes unpredictably is telling you to inspect the installation. More antenna adjustments will not repair a damaged cable, a loose stud or a mount that is no longer making the connection the antenna system needs.

The third mistake is leaving a new installation untested. A CB antenna needs to be checked on the truck it will serve. Test after installation, after moving the antenna, after changing the mount or coax, and after a hard strike that could have loosened the hardware. A small check at the right time is cheaper than losing communication when you need it.

Finally, avoid buying a pile of unrelated parts because they were on sale. The antenna, mount, stud, coax and radio connection all need to fit the same installation. A complete plan makes it easier to install once, tune once and understand what to inspect if the setup changes later.

A little planning also makes a future upgrade easier. When the mount and cable route are sound, you can evaluate a different radio, microphone or antenna with a useful baseline instead of rebuilding the diagnosis from scratch. That is the practical value of treating the antenna as a system from the beginning.

One antenna or dual antennas?

A single antenna is often the right answer when the truck has one excellent mounting location and you want the simplest system to inspect and tune. A properly installed single antenna can work very well. It gives you one mount, one cable path and one set of readings to understand, which can be valuable when reliability matters more than adding complexity.

Dual antennas can make sense on a rig designed for them, especially when both sides can use matching hardware and a correct harness. They should be installed as a matched system rather than as two separate accessories. Keep the antennas comparable, mount them consistently and use the manufacturer’s guidance for the spacing, harness and tuning process. A mismatched pair can create more questions than it answers.

Choose the system you can install and maintain correctly. For a driver who needs to keep the setup simple, a single quality antenna on a strong, well-placed mount is usually a more useful starting point than adding a second antenna without the right hardware and tuning plan.

A quick trucker antenna checklist

Use this list before you place an order or begin an installation. It keeps the decision focused on the parts of the system that will affect everyday use.

Choose the mounting position first. It should be sturdy, practical to inspect and give the antenna as much clear space as the truck allows.
Pick an antenna that fits that position. Consider height, clearance, adjustment method and whether the whip will stay upright on the routes you run.
Use matching installation hardware. The mount, stud, cable and connectors should be appropriate for the same antenna system, not a mix of convenient leftovers.
Route the coax deliberately. Keep it away from pinch points, sharp edges, heat and moving truck hardware, with broad bends and secure support.
Check the system with an SWR meter. Take readings after installation, make only approved small adjustments and recheck after the truck has been driven.

There is no need to turn the first check into a major project. You are confirming that the system behaves consistently and giving yourself a baseline. Keep the final channel readings in the truck or take a photo of the meter position. If the setup changes later, those notes make it easier to tell what has moved.

Buy the system, then check the whole system

Once you know the mounting position and the kind of clearance the truck allows, shop for the antenna, mount, coax and hardware together. Custom CB Radios carries CB antennas and mounting gear alongside radios, microphones and accessories, which makes it easier to build a setup around the truck instead of piecing together unrelated parts.

If the radio has weak transmit, poor receive or inconsistent range even after the antenna system has been checked, the problem may be somewhere else in the setup. The shop’s CB radio repair service can start from the useful details: radio model, antenna style, mount location, cable route and channel readings. That is a much better starting point than replacing equipment blindly.

For base-station antennas, the rules are different from a mobile truck setup. The FCC’s CB antenna-height rule sets the applicable height limits, so check the current rule before changing a fixed installation.

Technician working on a CB radio at a repair bench

Build It Right

Choose the truck setup, not just the antenna.

Bring the truck type, mounting location and clearance question. The shop can help you start with gear that fits the whole setup.

Shop Antennas →

Frequently asked questions

What is the best CB antenna for a semi truck?+

The best choice is the antenna system that fits the rig, mounting position and route you run. A quality antenna on a solid mount with a clean coax route and enough clearance will serve a working truck better than a more expensive whip installed in a poor location.

Should a trucker use one CB antenna or two?+

One antenna can work very well when it is mounted correctly and tuned as part of the whole system. Dual antennas can be a sensible choice when the truck and mounting hardware support a properly matched pair, but two antennas do not automatically fix a weak mount, damaged coax or poor tuning.

How tall should a CB antenna be on a truck?+

Choose a height that gives the antenna useful clearance while still fitting the routes, parking areas and low obstacles you encounter. A taller whip can offer more clearance from the cab, but it must be mounted securely and remain practical for the work the truck does.

Do truck CB antennas need to be tuned?+

Yes. Every mobile antenna system should be checked with an SWR meter after installation and after a meaningful change to the mount, coax, antenna or truck. Tuning confirms how the system behaves on the vehicle, not just how the antenna looks in the box.

Can a bad mount make a new CB antenna perform poorly?+

Yes. The mount is part of the system. Loose hardware, corrosion, a poor electrical path or an antenna crowded by nearby metal can create poor or unstable readings that an antenna swap alone will not solve.
